Many times in the midst of a sewing project, I would remember a technique I wanted to use but not having used it often enough, I would end up searching the internet for a “refresher course.” Sometimes I forget the term to use so it takes me longer to find what I need especially when I have forgotten to bookmark a site. Since I have this sewing blog, I thought “why not write about those techniques so it’ll be easier to search for them next time?” So I will be posting a series on my favorite sewing techniques and filing them under “My Best Practices!”
Since discovering this technique from Pattern Review several years ago, I have employed it several times in my sewing projects but it was only very recently that I found out the technical term for it was "Flatlining" thanks to Kathryn Brenne, a sewing guru I follow at Emma One Sock and Instragram.
What is it?
Flatlining in sewing is a technique used to underline and finish seam in one step. It can be used as a way to underline a garment or treated as a lining in itself. It works best on vertical seams like the sides seams of a skirt or pants or the princess and center back seams of a blouse or dress.
How to do it?
1. Cut the underlining fabric using the same pattern piece as the main fabric but double the seam allowance on the vertical seams only.

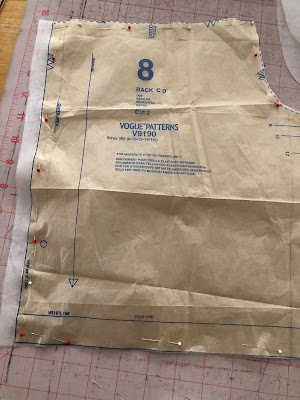

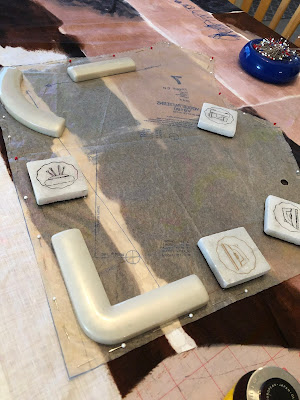

|In this example, I am cutting one bodice piece from the main fabric which is linen.|

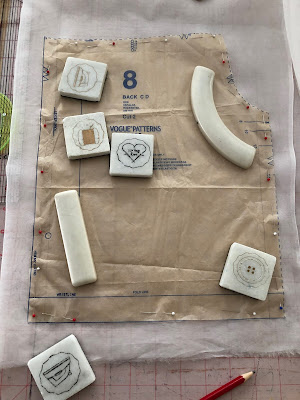

|I laid out the same pattern piece over my underlining which is silk organza.|

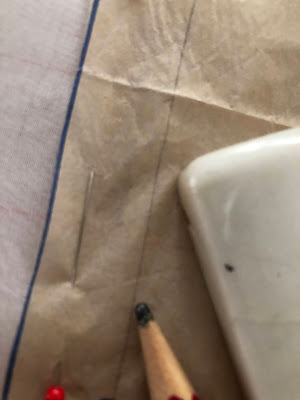

|The seam allowance on the pattern is 5/8" as shown by the pencil marking.|

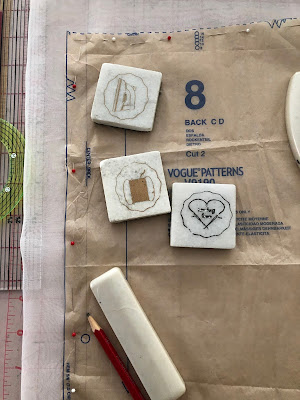

|I am working on the vertical edge and in this case, it is the center back seam of a back bodice. I will do the same on the side seam.|

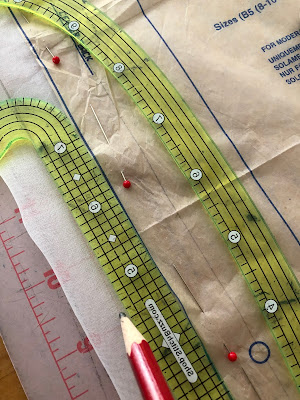

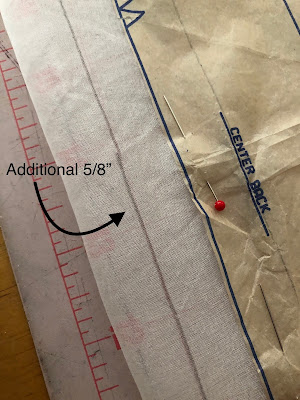

|I am adding an additional 5/8" to the vertical seam only. Using a 5/8" curved ruler makes marking easier.|
|It was easy to mark with a pencil on the silk organza.|

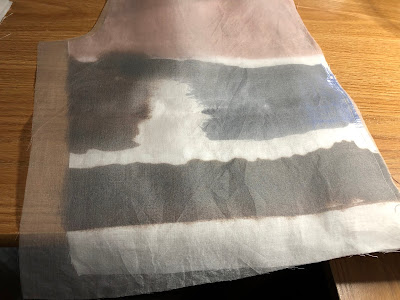

|The underlining has been cut with the additional seam allowance. The rest of the seam allowances follow the original pattern.|
2. Do this step one vertical edge at a time. Lay out the underlining and main fabric right sides together. Sew the vertical seams in a 1/4" seam allowance.

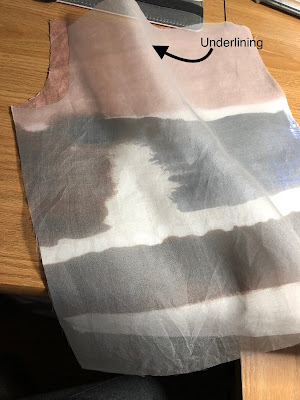

|Notice that the underlining is wider than the main fabric. |
Align them on one vertical edge first.

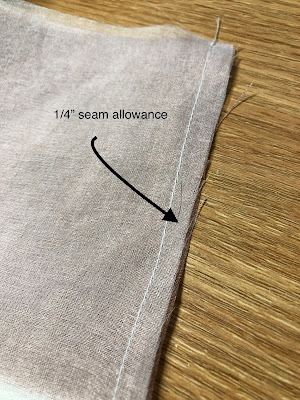

|Sew the vertical seams together in a 1/4" seam allowance.|
3. Turn right side out The underlining piece will wrap around the edge of the main piece because the former is cut wider. Smooth the layers then press.
|Notice that the underlining has more excess than the main fabric.|
|Smooth out the excess towards the side edges so the underlining wraps around the main fabric.|

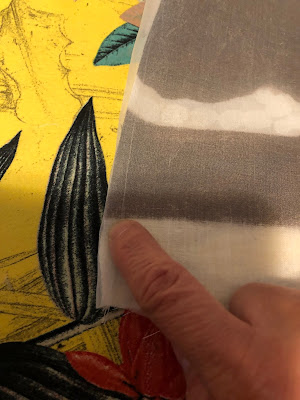

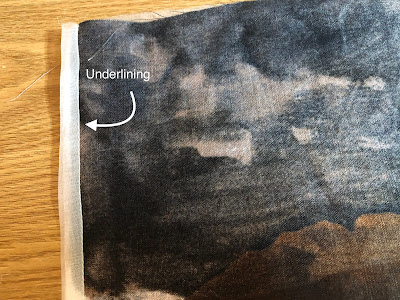

|A closer view from the right side.|
|View of the wrong side.|
4. From the right side, stitch in the ditch. This will secure the seam allowances.
|Stitch the two layers in the ditch.|
4. If you want, hand baste the remaining edges together before proceeding. Then treat the two layers as one and proceed with the rest of the sewing.
|This is a skirt and it shows the side seam after the flat lined front and back pieces were sewn together.|

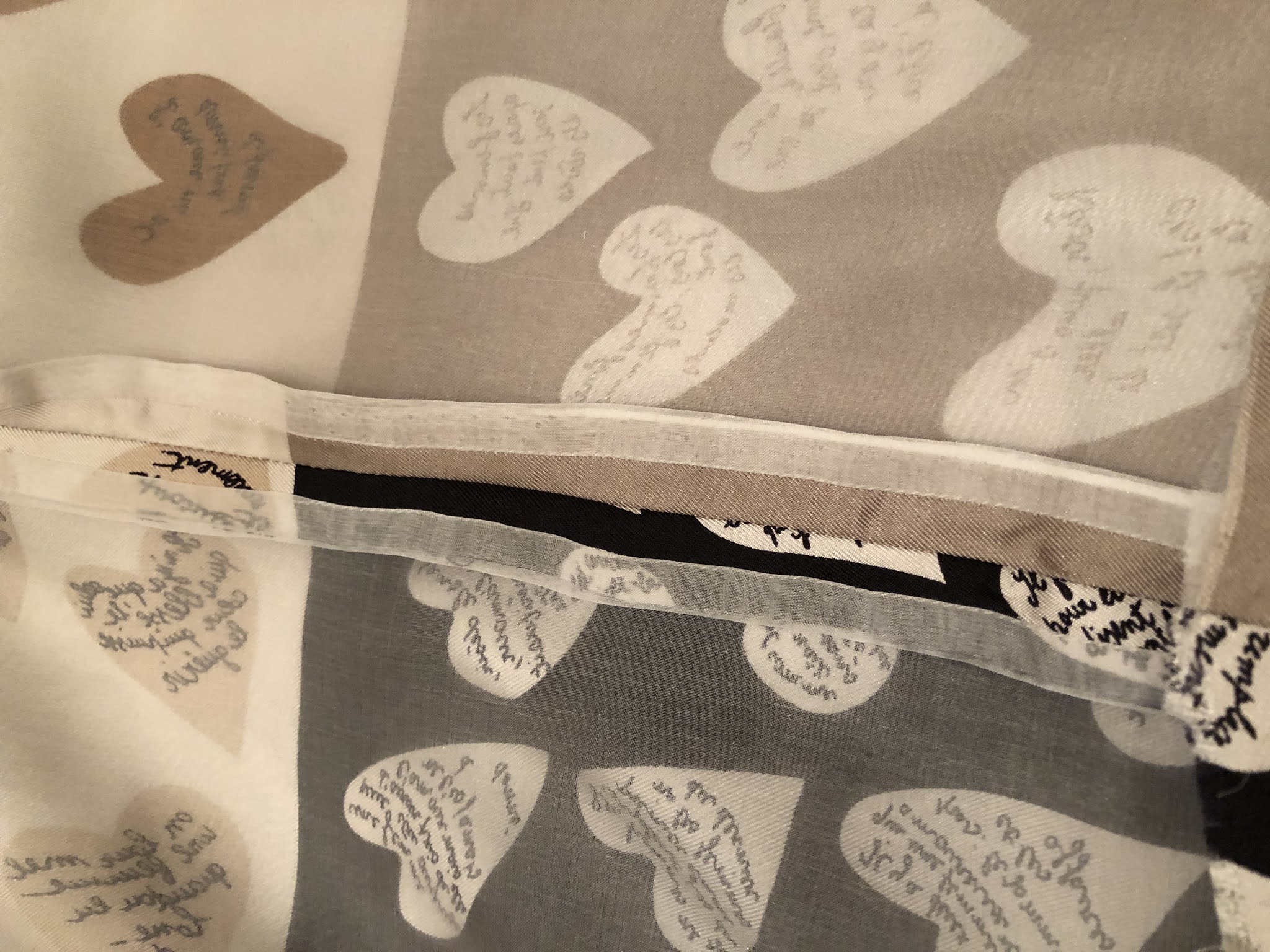

|Seams pressed open. Instead of raw edges, you can see a nicely wrapped edge.|

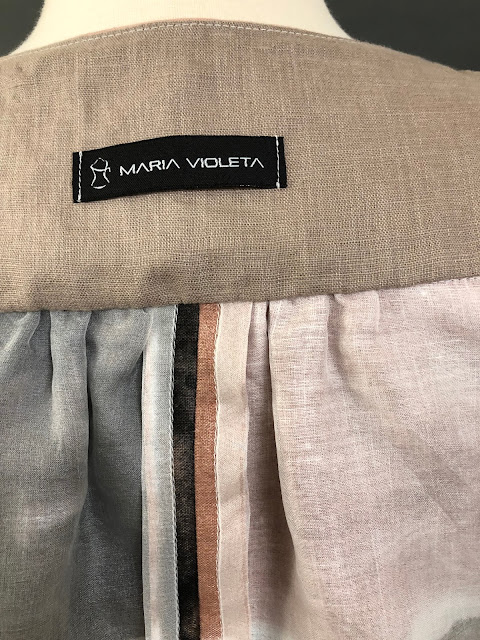

|Another closeup of a flatlined seam, this time on the center back of a shrug.|
A couple of finished projects using flatlining:

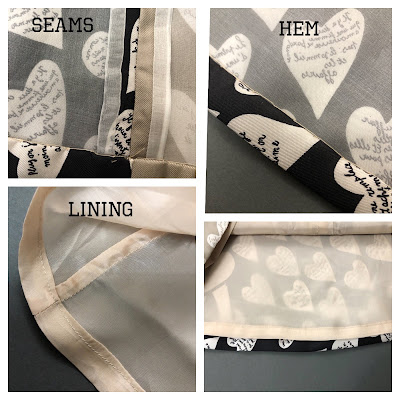

|This one is a skirt which underlined using the flatlining method but I also added a separate lining. If you are interested in reading more about the skirt (New Look 6345), check out the post I wrote about it more than a year ago here.|
